Understanding the Pre-Action System (UAE Fire and Life Safety Code)

Every second counts when things are about fire safety. In places where accidental water discharge can cause as much damage as fire itself, (like data centers, museums, or high-value storage facilities) Pre-Action Systems offer a reliable solution. Also referred to as Pre Action Sprinkler Systems in some instances, what they do is – minimize unnecessary water damage while warranting rapid response to fire emergencies.

What is a Pre-Action System?

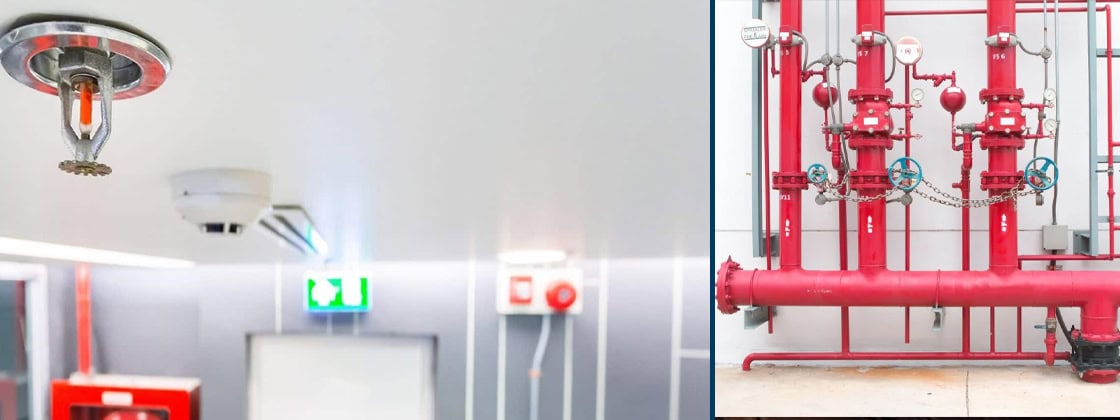

A Pre-Action System is a type of fire suppression system that uses automatic sprinklers. Unlike traditional sprinklers though, it does not store water in the pipes. Instead, the pipes contain air or nitrogen, and water is only released when a separate fire detection system activates. Extra layer of security helps reduce the risk of accidental water damage and providing effective fire suppression.

Types of Pre-Action Systems

There are two primary Pre-Action System Types: Single Interlock System: Water is admitted into the pipes when the detection system senses fire. It should be noted that sprinklers do not release water unless they are also triggered by heat. Double Interlock System: Water is released only when both the detection system and the sprinklers are activated. It’s done to give an extra safeguard against false alarms and unintended discharge. Key Components of a Pre-Action System To function effectively, a Pre-Action Fire System includes several essential components:

• Fire Pumps & Water Tanks – For sufficient water supply when the system is activated.
• Pipes, Fittings & Sprinkler Heads – Distribute and release water only when necessary.
• Pre-Action Valves & Pressure Gauges – Regulate water flow and monitor pressure levels.
• Air/Nitrogen Supply & Control Valves – Maintain air pressure in the pipes to prevent water from filling them prematurely.
• Flow Switches, Test Connections & Drains – Help test and maintain the system for optimal performance.

Installation Standards (As per UAE Fire and Life Safety Code)

The UAE Fire and Life Safety Code outlines specific requirements for guaranteeing the so-called Pre-Action Systems function properly.

These include:

Valves: Automatic water control valves must have manual override options.

Pressure Gauges: Installed above and below pre-action valves for accurate pressure monitoring.

Sprinklers: Must be listed and approved for the intended application.

System Size: Each pre-action valve should serve no more than 1,000 sprinklers, and water delivery should occur within 60 seconds of activation.

Fire Detection: Must comply with Chapter 8 of the UAE Fire and Life Safety Code. It highlights proper integration with fire alarm systems.

Operational Requirements

To maintain a reliable and functional Pre-Action System in UAE,

the following operational guidelines must be met:

Maintain Air/Nitrogen Pressure all Year-Round –

This keeps the pipes dry and prevents unintended water discharge.

A Continuous Compressed Air Supply –

Essential for keeping the system ready to activate when needed. Install Check Valves and Low-Air-Pressure Alarms – These prevent backflow and alert maintenance teams to potential issues.

The only Choice for Fire Safety Solutions

Fire risks are unpredictable! Therefore, having a reliable Pre-Action System can make all the difference in the world.
